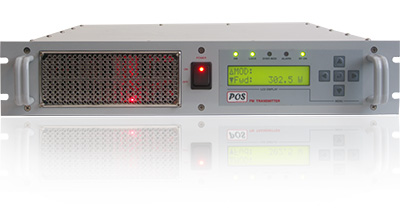

FM Transmitter POS-300N+ Series

FM Transmitter POS-300N+ Series
FM transmitter for audio broadcasting, able to transmit in the band between 87.5 and 108 MHz. Built in high quality stereo coder, with L&R Mono/Stereo and MPX inputs and 2 SCA / RDS signal input. Continuously adjustable output power from 0 to 300 watt. Completely microprocessor-controlled easy to program from the menu, all main parameters can be read on the large LCD display. They are designed in aluminum box to be contained in a 19” rack of 2U.
Brochure...

Technical Specifications

  Panel size   485 mm (19") x 88 mm (2U)
  Depth   550 mm
  RF output power   0 to 300 watts, adjustable
  RF output connector   N - type female
  RF output impedance   50 Ohm
  Frequency range   87.5 MHz ÷ 108 MHz
  Frequency setting   software programming
  Frequency step   10 KHz
  Frequency error   < +-300 Hz
  Frequency deviation   < +-75 Hz
  Spurious and Harmonics suppression   respects FCC and CCIR standards
  A.C. power supply   200 V ÷ 260 V

About FM Transmitter POS-300N+ Series

Audio Performance AUDIO PERFORMANCE
Design base on SMD technology that guarantee for low noise and reliability. The audio features are low distortion and intermodulation values and a high noise/signal ratio. The Voltage Control Oscillator ( VCO) use for varicap diode for frequency stabilizer with TCXO reference.
REAR PANEL DESIGN Rear Panel Design
Rear panel design for all connection such as Audio balance input, MPX input, SCA&RDS input, RS232, Remote, RF output, RF test, AC input and Ground.
Digital Audio Input DIGITAL AUDIO INPUT
Ready for digital AES/EBU audio input. This option available for POS-300ND+. Please contact for on your order request.
