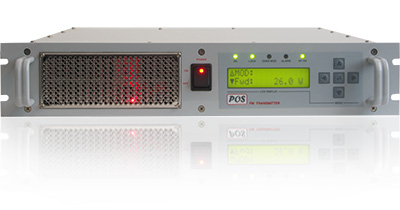

FM Exciter POS-25N+ Series
 |
| FM exciters for audio broadcasting, able to transmit in the band between 87.5 and 108 MHz. Built in high quality stereo coder, with L&R Mono/Stereo and MPX inputs and 2 SCA / RDS signal input. Continuously adjustable output power from 0 to 25 watt. Completely microprocessor-controlled easy to program from the menu, all main parameters can be read on the large LCD display. They are designed in aluminum box to be contained in a 19” rack of 2U. |
 Brochure... |
Technical Specifications |
| Panel size |
485 mm (19") x 88 mm (2U) |
| Depth |
440 mm |
| RF output power |
0 to 25 watts, adjustable |
| RF output connector |
N - type female |
| RF output impedance |
50 Ohm |
| Frequency range |
87.5 MHz ÷ 108 MHz |
| Frequency setting |
software programming |
| Frequency step |
10 KHz |
| Frequency error |
< +-300 Hz |
| Frequency deviation |
< +-75 Hz |
| Spurious and Harmonics suppression |
respects FCC and CCIR standards |
| A.C. power supply |
200 V ÷ 260 V |
|
About FM Exciter POS-25N+ Series
 |
AUDIO PERFORMANCE
|
| Design base on SMD technology that guarantee for low noise and reliability. The audio features are low distortion and intermodulation values and a high noise/signal ratio. The Voltage Control Oscillator ( VCO) use for varicap diode for frequency stabilizer with TCXO reference. |
| REAR PANEL DESIGN |
|
| Rear panel design for all connection such as Audio balance input, MPX input, SCA&RDS input, RS232, Remote, RF output, RF test, AC input and Ground. |
 |
DIGITAL AUDIO INPUT
|
| Ready for digital AES/EBU audio input. This option available for POS-25ND+. Please contact for on your order request. |
